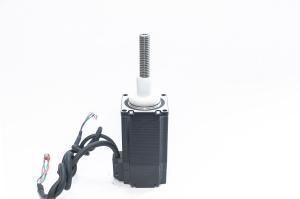

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor

  • 1
  • 2
  • 3

Model Number : 57mm Linear Stepper Motor

Certification : 40

Place of Origin : Changzhou, China

Brand Name : Hontru

MOQ : 1 set

Price : Negotiation

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

Delivery Time : 5-10 working days

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs/month

Name : 57mm Linear Stepper Motor

Phase number : 2

Step angle accuracy IP rating : ±5%

Insulation level : RoHS CE ISO9001 B(130℃)

Operating ambient temperature : -20℃~ +50℃

Contact Now

57mm Linear Stepper Motor

Phase number 2
Step angle accuracy IP rating ±5%
Certification 40
Insulation level RoHS CE ISO9001 B(130℃)
Operating ambient temperature -20℃~ +50℃

Motor parameters

Motor Type Body L(mm) Holding torque(N.m) Rated current(A) Resistance(Ω) Rated inductance(mH) Rated voltage(V)
57 45mm 0.7 3A 0.75Ω 0.72mH 2.25V
55mm 0.9 3A 0.92Ω 4.5mH 3.3mH 2.76V
65mm 1.5 4A 0.78Ω 3.12V
75mm 1.8 4A 0.95Ω 4.5mH 3.8V
84mm(except through) 2.2 4A 0.97Ω 7mH 3.88V
100mm(except through) 2.5 5A 0.7Ω 3.2mH 3.5V

Screw parameters :

diameter(mm) Screw diameter(inch) Lead(mm) Lead(inch) Step Length 1.8°(°) Nut axial clearance
9.525 0.375 0.635 0.025 0.003175 0.02-0.03mm
9.525 0.375 1.27 0.05 0.00635 0.02-0.03mm
9.525 0.375 1.5875 0.0625 0.0079375 0.02-0.03mm
9.525 0.375 2.1167 0.083 0.0105835 0.02-0.03mm
9.525 0.375 2.54 0.1 0.0127 0.02-0.03mm
9.525 0.375 3.175 0.125 0.015875 0.02-0.03mm
9.525 0.375 4.232 0.167 0.02116 0.02-0.03mm
9.525 0.375 5.08 0.2 0.0254 0.02-0.03mm
9.525 0.375 6.35 0.25 0.03175 0.02-0.03mm
9.525 0.375 9.525 0.375 0.047625 0.02-0.03mm
9.525 0.375 10.16 0.4 0.0508 0.02-0.03mm
9.525 0.375 12.7 0.5 0.0635 0.02-0.03mm
9.525 0.375 25.4 1 0.127 0.02-0.03mm
6.35 0.25 25.4 1 0.127 0.02-0.03mm

Dimensions

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor

Screw Type

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor

Dynamic thrust curve

10.8VDC Linear Hybrid Stepper Motor 57mm Lead Screw Motor
