Nema 14 36mm Size 14 Hybrid Linear Stepper Linear Actuator Gearbox Non Captive

Model Number : 35mm Linear Stepper Motor

Certification : 40

Place of Origin : Changzhou, China

Brand Name : Hontru

MOQ : 1 set

Price : Negotiation

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

Delivery Time : 5-10 working days

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs/month

Name : 35mm Linear Stepper Motor

Phase number : 2

Step angle accuracy IP rating : ±5%

Insulation level : RoHS CE ISO9001 B(130℃)

Operating ambient temperature : -20℃~ +50℃

Contact Now

35mm Linear Stepper Motor

Phase number 2
Step angle accuracy IP rating ±5%
Certification 40
Insulation level RoHS CE ISO9001 B(130℃)
Operating ambient temperature -20℃~ +50℃

Motor parameters

Motor Type Body L(mm) Holding torque(N.m) Rated current(A) Resistance(Ω) Rated inductance(mH) Rated voltage(V)
35 34mm 0.14 1A 2.3Ω 3.6mH 2.3V
47mm 0.35 1.5A 1.35Ω 1.85mH 2V

Screw parameters :

diameter(mm) Screw diameter(inch) Lead(mm) Lead(inch) Step Length 1.8°(°) Nut axial clearance
6.35 0.25 0.79375 0.0313 0.004 0.02-0.03mm
6.35 0.25 1 0.0394 0.005 0.02-0.03mm
6.35 0.25 1.5875 0.0625 0.0079 0.02-0.03mm
6.35 0.25 2 0.0787 0.01 0.02-0.03mm
6.35 0.25 2.4384 0.096 0.0122 0.02-0.03mm
6.35 0.25 2.54 0.1 0.0127 0.02-0.03mm
6.35 0.25 3 0.1181 0.015 0.02-0.03mm
6.35 0.25 3.175 0.125 0.0159 0.02-0.03mm
6.35 0.25 4.8768 0.192 0.024384 0.02-0.03mm
6.35 0.25 5.08 0.2 0.0254 0.02-0.03mm
6.35 0.25 6.35 0.25 0.0318 0.02-0.03mm
6.35 0.25 8.4582 0.333 0.0423 0.02-0.03mm
6.35 0.25 12.7 0.5 0.0635 0.02-0.03mm
6.35 0.25 25.4 1 0.127 0.02-0.03mm

Dimensions

Nema 14 36mm Size 14 Hybrid Linear Stepper Linear Actuator Gearbox Non Captive

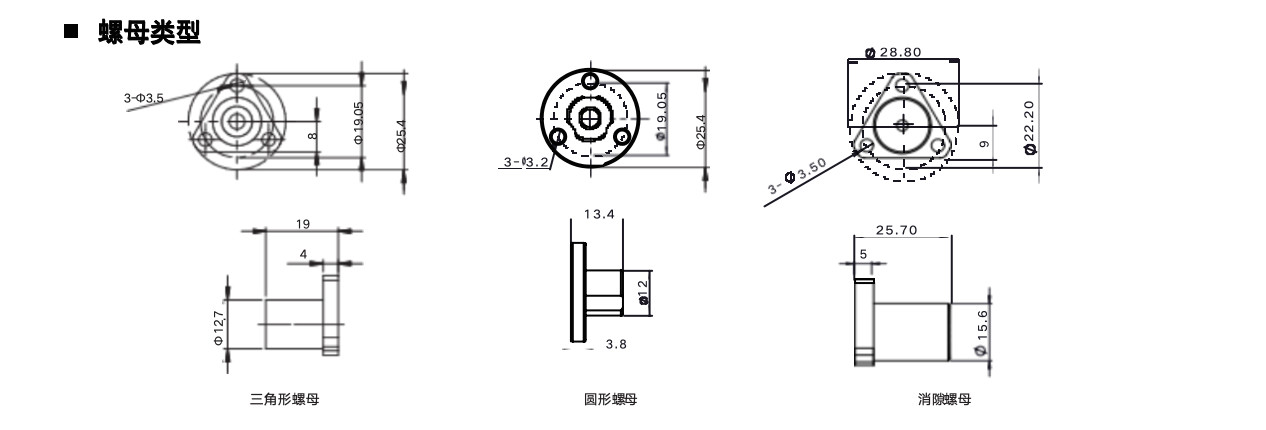

Screw Type

Nema 14 36mm Size 14 Hybrid Linear Stepper Linear Actuator Gearbox Non Captive

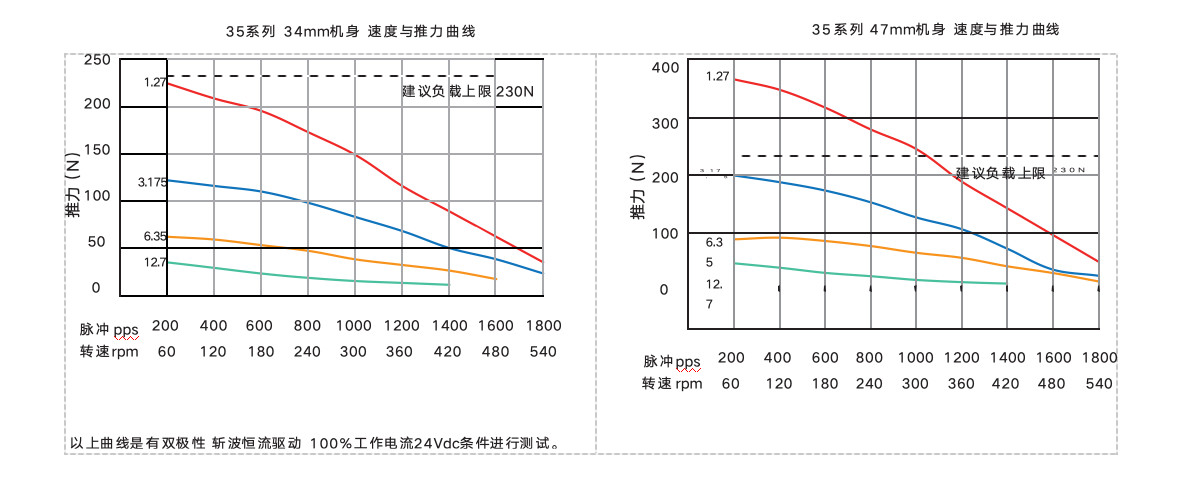

Dynamic thrust curve

Nema 14 36mm Size 14 Hybrid Linear Stepper Linear Actuator Gearbox Non Captive
