180W 4000rpm 57mm Round Brushless DC Motor 36V Dc Gear Motor 24v

Name: 180W 4000rpm 57mm Round Brushless DC Motor 36V Dc Gear Motor 24v
Brand: Hontru
Price: 1 USD

China 180W 4000rpm 57mm Round Brushless DC Motor 36V Dc Gear Motor 24v wholesale

Model Number : HC57BLF

Place of Origin : Changzhou, China

Brand Name : Hontru

Certification : CE ISO RoHS

MOQ : 1 set

Price : Negotiation

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

Delivery Time : 5-10 working days

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs/month

Name : 57mm Round Brushless Motor

Number of poles : 4

Number of phases : 3

Rated voltage (VDC) : 24

Rated speed (rpm) : 3000

Winding method : Y

Hall distribution angle : 120°

Insulation level : B

Insulation resistance : 100MΩ Min.500VDC

Dielectric strength : 600VAC,1Min.

Maximum radial load : 28N

Maximum axial load : 10N

Contact Now

57mm Square Brushless Motor

Specification

Item	index parameter
Winding method	Y
Hall distribution angle	120°
Insulation level	B
Insulation resistance	100MΩ Min.500VDC
Dielectric strength	600VAC,1Min.
Maximum radial load	28N
Maximum axial load	10N

Wiring
Function Definition	Color	Wire Gauge
+5V	Red	AWG26 UL1430
Hu	White
Hv	Blue
Hw	Green
GND	Black
U	White	AWG22 UL1430
V	Blue
W	Green

Motor model	HC57BLY47	HC57BLY52	HC57BLY62	HC57BLY72	HC57BLY92	HC57BLY112
Number of poles	4
Number of phases	3
Rated voltage (VDC)	24
Rated speed (rpm)	3000
Rated torque (N.m)	0.07	0.11	0.18	0.22	0.33	0.45
Rated current (A)	1.5	2	3.5	4	6	8
Rated power (W)	25	41	57	79	110	140
Peak torque (N.m)	0.21	0.33	0.54	0.66	0.99	1.35
Peak current (A)	4.5	6	10.5	12	18	24
Back EMF constant (Vrms/Krpm)	6	6.3	6.4	6.2	6	6.5
Torque constant (N.m/A)	0.058	0.062	0.06	0.059	0.057	0.065
Moment of inertia (g.cm2)	30	45	60	120	180	240
Body length L (mm)	47	52	62	72	92	112
Weight (kg)	0.33	0.45	0.65	0.8	0.95	1.2

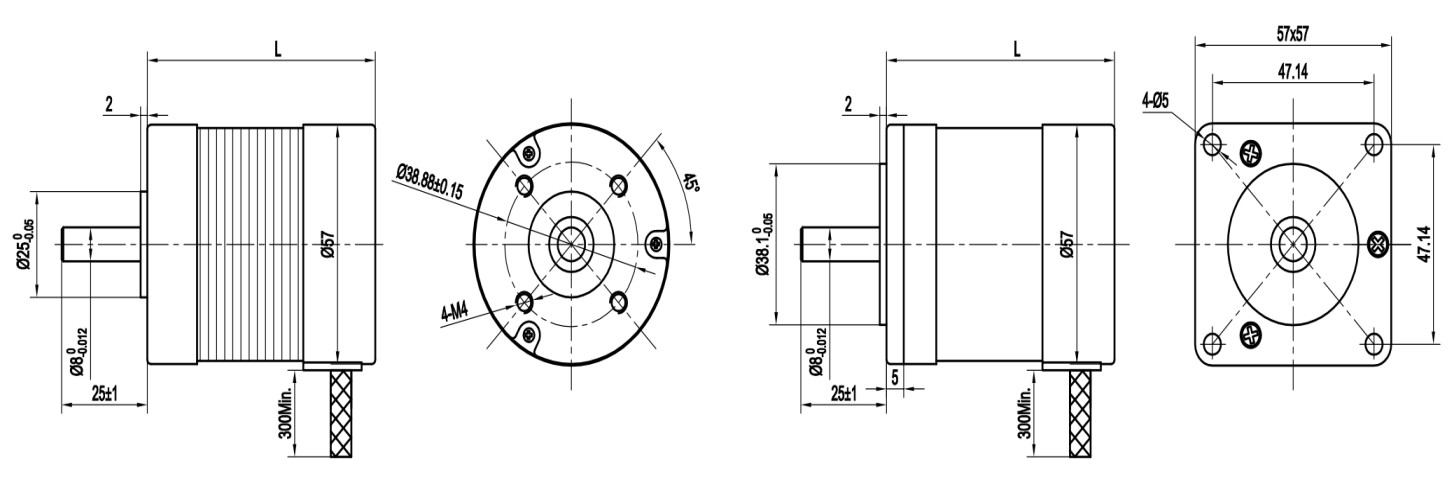

Outline:

180W 4000rpm 57mm Round Brushless DC Motor 36V Dc Gear Motor 24v

Product Tags:

4000rpm Round Brushless DC Motor

57mm Round Brushless DC Motor

brushless motor 36v

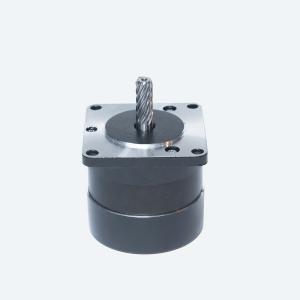

180W 4000rpm 57mm Round Brushless DC Motor 36V Dc Gear Motor 24v Images
