NEMA23 57mm Square Brushless DC Electric Motor 3000RPM 0.6N.M 36v Bldc Motor

Name: NEMA23 57mm Square Brushless DC Electric Motor 3000RPM 06NM 36v Bldc Motor
Brand: Hontru
Price: 1 USD

China NEMA23 57mm Square Brushless DC Electric Motor 3000RPM 0.6N.M 36v Bldc Motor wholesale

Model Number : HC57BLF

Place of Origin : Changzhou, China

Brand Name : Hontru

Certification : CE ISO RoHS

MOQ : 1 set

Price : Negotiation

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

Delivery Time : 5-10 working days

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs/month

Name : 57mm Square Brushless Motor

Number of poles : 4

Number of phases : 8

Rated voltage (VDC) : 24

Rated speed (rpm) : 3000

Winding method : Y

Hall distribution angle : 120°

Insulation level : B

Insulation resistance : 100MΩ Min.500VDC

Dielectric strength : 600VAC,1Min.

Maximum radial load : 28N

Maximum axial load : 10N

Contact Now

57mm Square Brushless Motor

Specification

Item	index parameter
Winding method	Y
Hall distribution angle	120°
Insulation level	B
Insulation resistance	100MΩ Min.500VDC
Dielectric strength	600VAC,1Min.
Maximum radial load	28N
Maximum axial load	10N

Wiring
Function Definition	Color	Wire Gauge
+5V	Red	AWG26 UL1430
Hu	White
Hv	Blue
Hw	Green
GND	Black
U	White	AWG22 UL1430
V	Blue
W	Green

Motor model	HC57BLF59	HC57BLF80	HC57BLF101	HC57BLF122
Number of poles	3
Number of phases	8
Rated voltage (VDC)	24
Rated speed (rpm)	3000
Rated torque (N.m)	0.2	0.4	0.6	0.8
Rated current (A)	3.5	7	10.5	14
Rated power (W)	63	125	188	250
Peak torque (N.m)	0.6	1.2	1.8	2.4
Peak current (A)	10.5	21	31.5	42
Back EMF constant (Vrms/Krpm)	6	6	6	6
Torque constant (N.m/A)	0.057	0.057	0.057	0.057
Moment of inertia (g.cm2)	120	180	240	300
Body length L (mm)	59	80	101	122
Weight (kg)	0.6	1	1.4	1.8

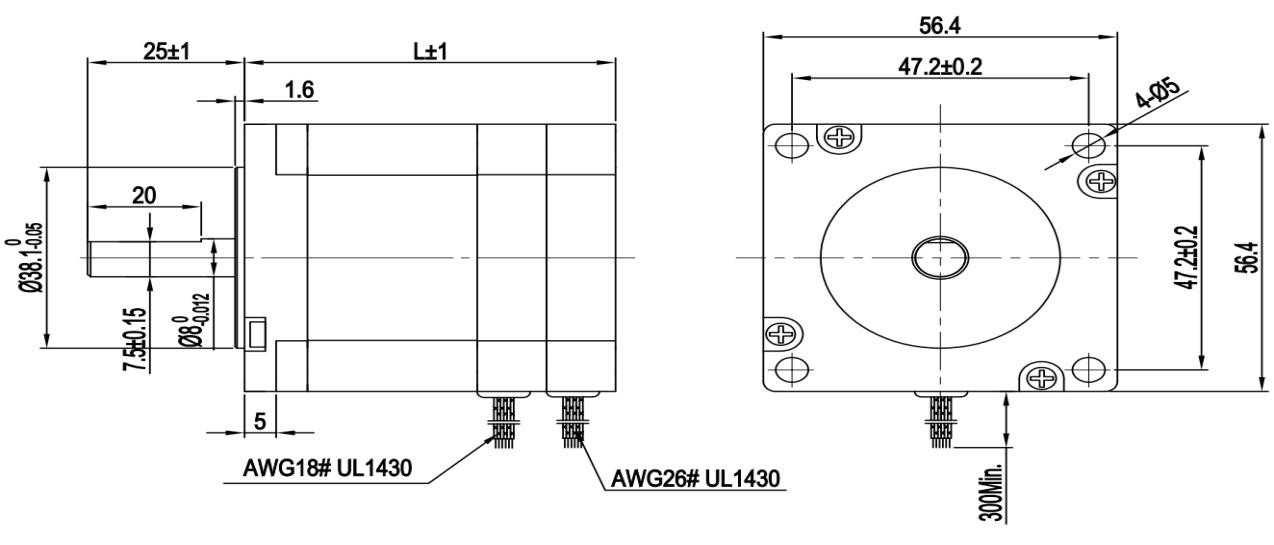

Outline:

NEMA23 57mm Square Brushless DC Electric Motor 3000RPM 0.6N.M 36v Bldc Motor
