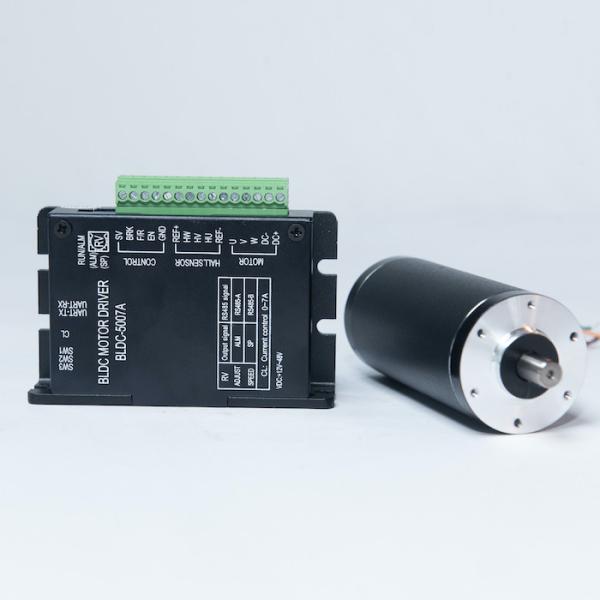

24 Volt Bldc Motor 42mm Round Type 24V Brushless DC Motor 3000RPM

Name: 24 Volt Bldc Motor 42mm Round Type 24V Brushless DC Motor 3000RPM
Brand: Hontru
Price: 1 USD

China 24 Volt Bldc Motor 42mm Round Type 24V Brushless DC Motor 3000RPM wholesale

Model Number : HC42BLFS

Place of Origin : Changzhou, China

Brand Name : Hontru

Certification : CE ISO RoHS

MOQ : 1 set

Price : Negotiation

Packaging Details : Foam+Hard Carton or Wooden Case+Waterproof film

Delivery Time : 5-10 working days

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 10000pcs/month

Name : 42mm Round Brushless Motor

Number of poles : 4

Number of phases : 3

Rated voltage (VDC) : 24

Rated speed (rpm) : 3000

Winding method : Y

Hall distribution angle : 120°

Insulation level : B

Insulation resistance : 100MΩ Min.500VDC

Dielectric strength : 600VAC,1Min.

Maximum radial load : 28N

Maximum axial load : 10N

Contact Now

42mm Round Brushless Motor

Specification

Item	index parameter
Winding method	Y
Hall distribution angle	120°
Insulation level	B
Insulation resistance	100MΩ Min.500VDC
Dielectric strength	600VAC,1Min.
Maximum radial load	28N
Maximum axial load	10N

Wiring
Function Definition	Color	Wire Gauge
+5V	Red	AWG26 UL1430
Hu	White
Hv	Blue
Hw	Green
GND	Black
U	White	AWG22 UL1430
V	Blue
W	Green

Motor model	HC42BLY40	HC42BLY60	HC42BLY85	HC42BLY95
Number of poles	4
Number of phases	3
Rated voltage (VDC)	24
Rated speed (rpm)	3000
Rated torque (N.m)	0.04	0.07	0.12	0.18
Rated current (A)	0.8	1.5	2.1	3.2
Rated power (W)	12	22	38	56
Peak torque (N.m)	0.12	0.21	0.36	0.54
Peak current (A)	2.4	4.5	6.3	9.6
Back EMF constant (Vrms/Krpm)	6	6	6	6
Torque constant (N.m/A)	0.057	0.057	0.057	0.057
Moment of inertia (g.cm2)	24	33	84	96
Body length L (mm)	40	60	85	95
Weight (kg)	0.3	0.45	0.65	0.8

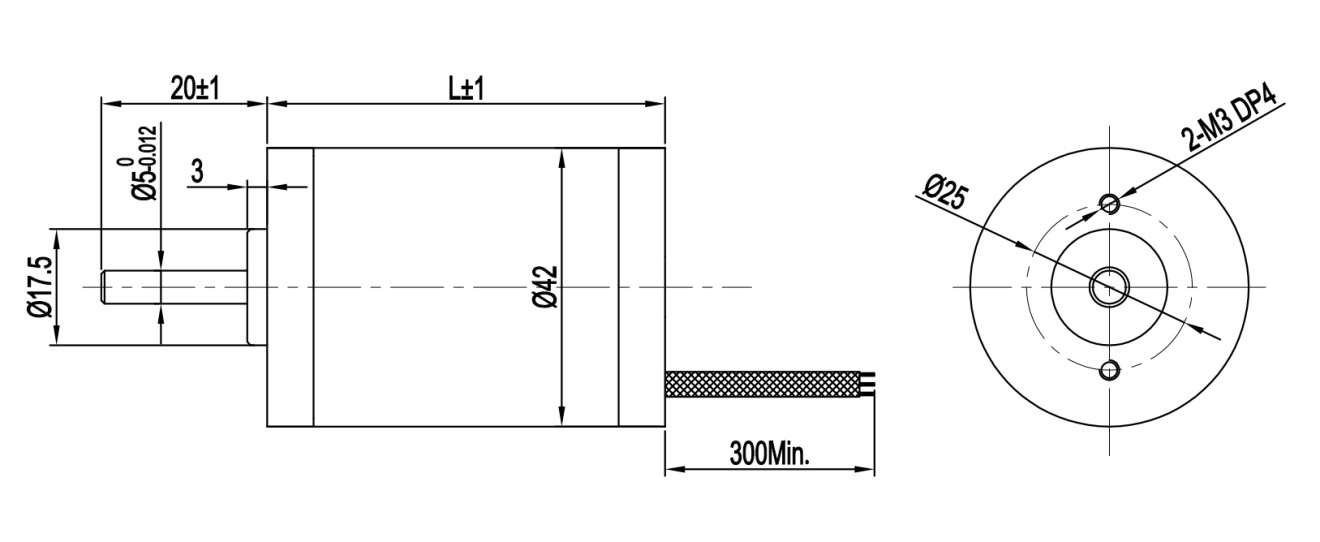

Outline:

24 Volt Bldc Motor 42mm Round Type 24V Brushless DC Motor 3000RPM

Product Tags:

Brushless DC Motor 3000RPM

24 volt bldc motor

24 volt brushless motor
